1993 Sony Walkman TCD-D8 DAT Digital Audio Tape-corder AVLS Recorder – From NPR w/ Belt Case Cover
Share this:

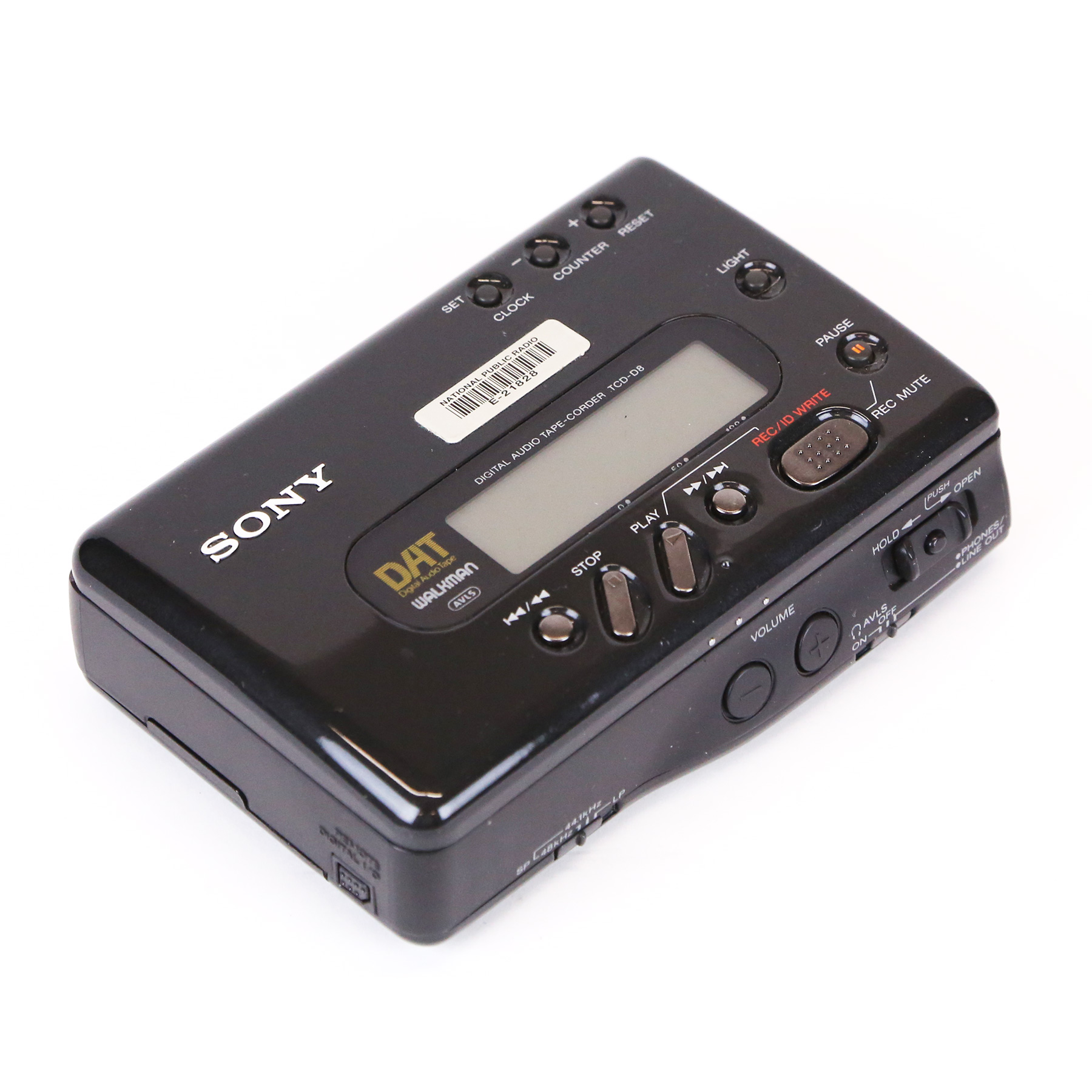

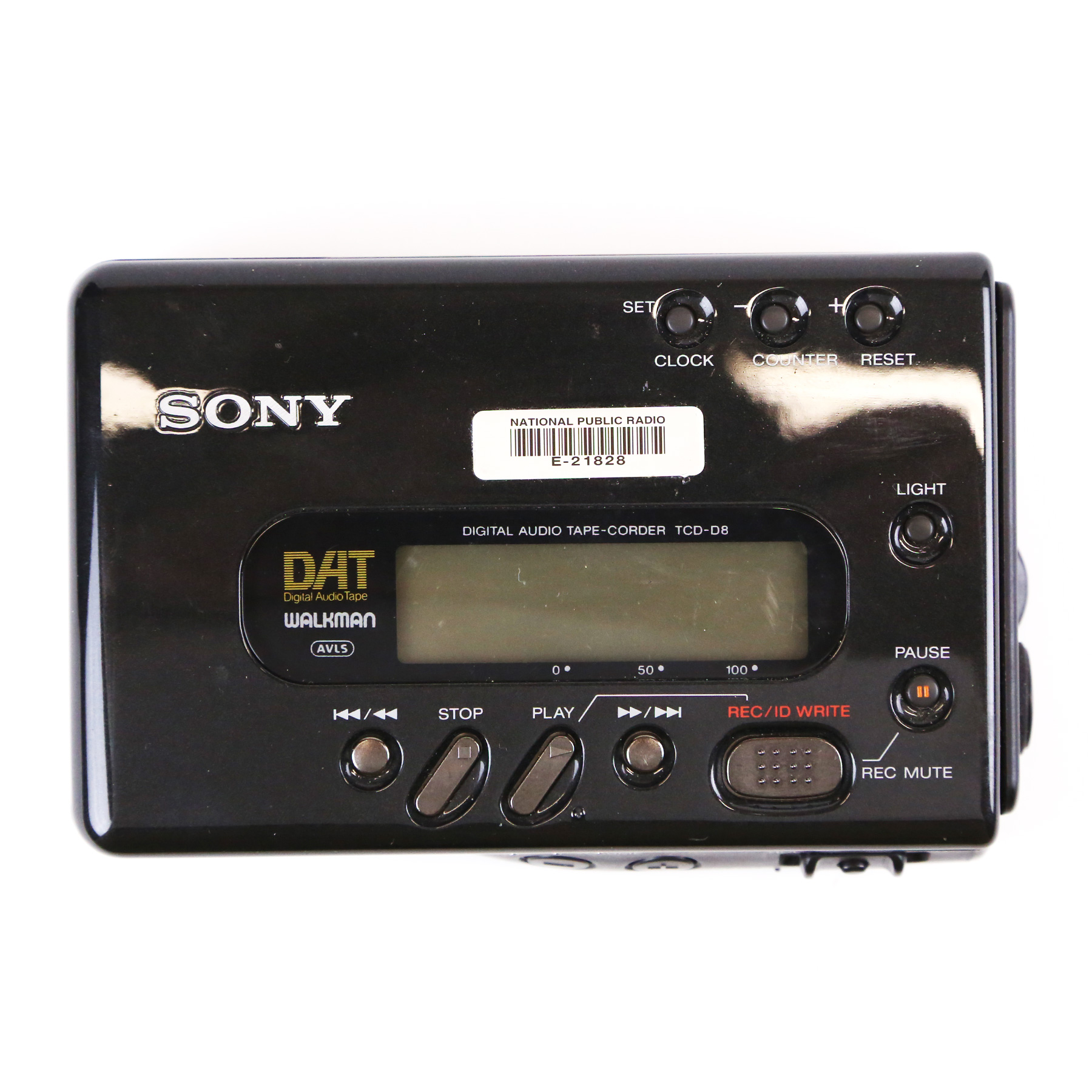

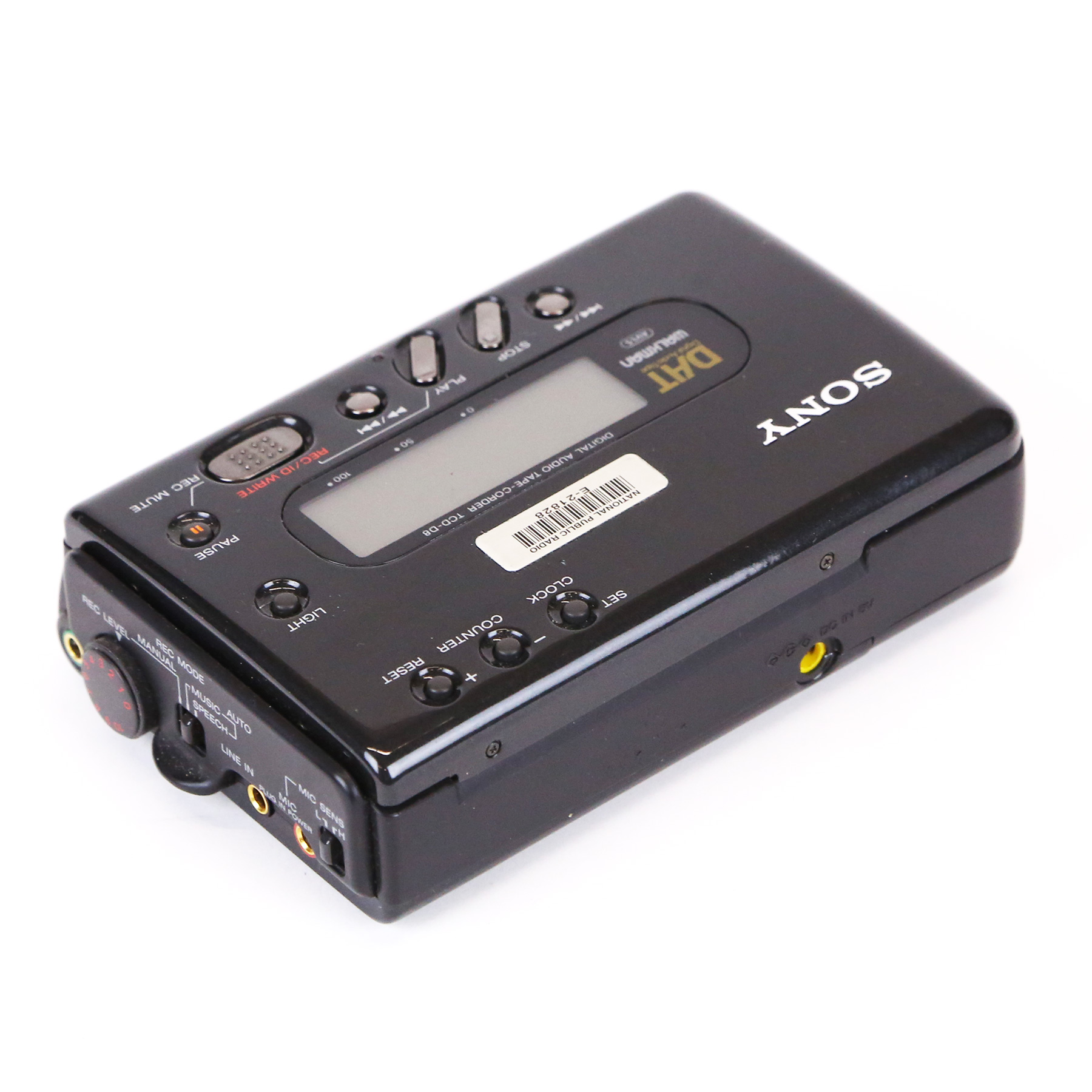

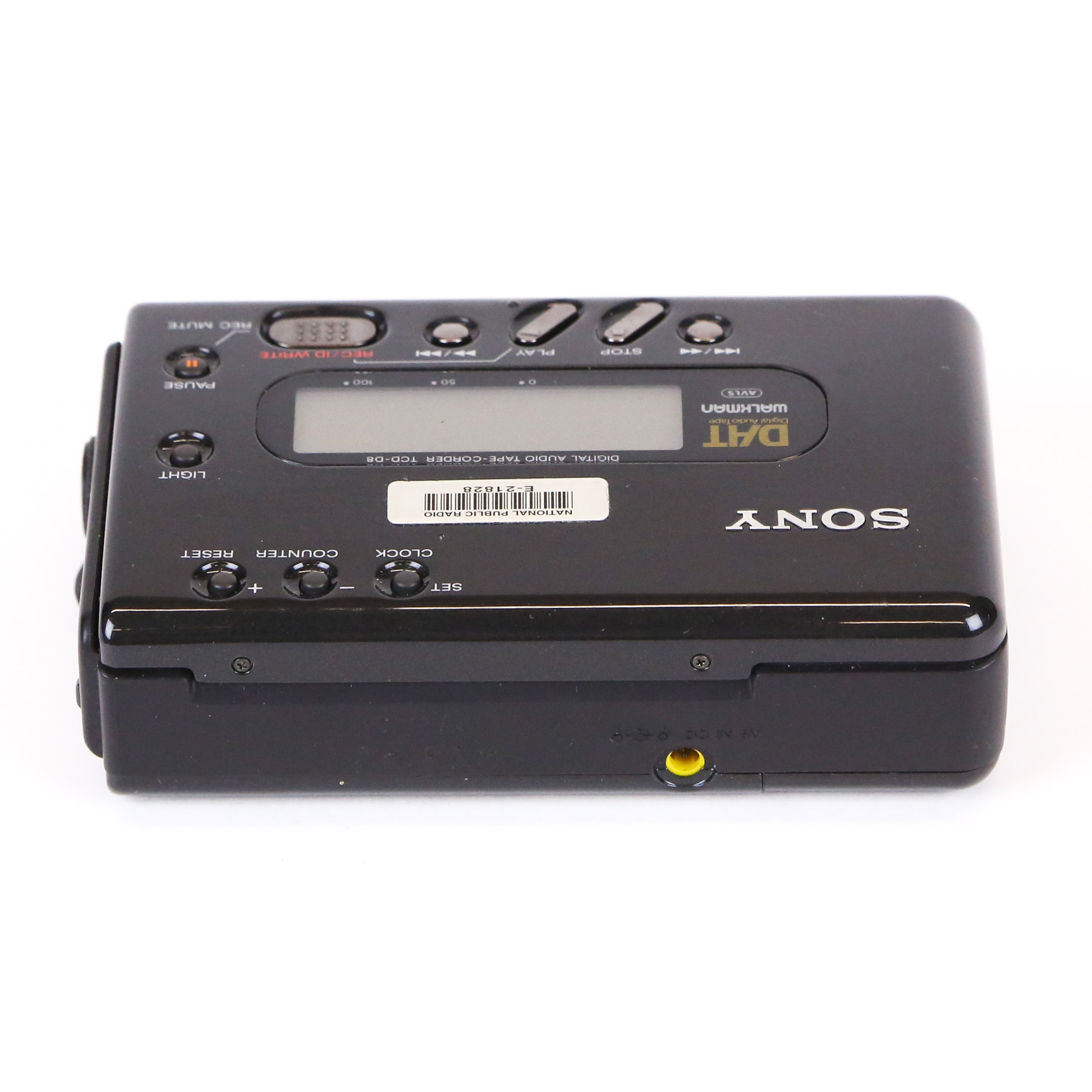

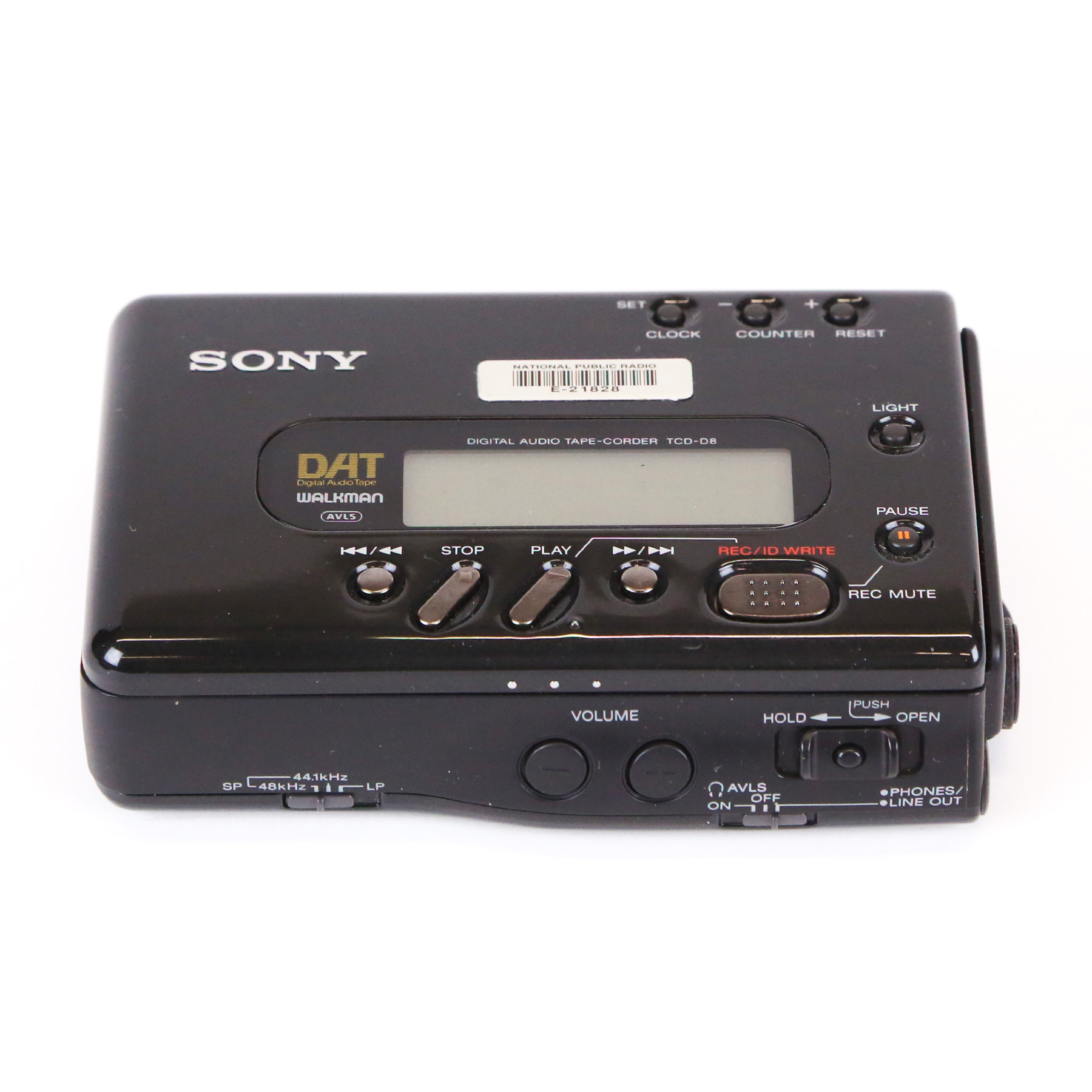

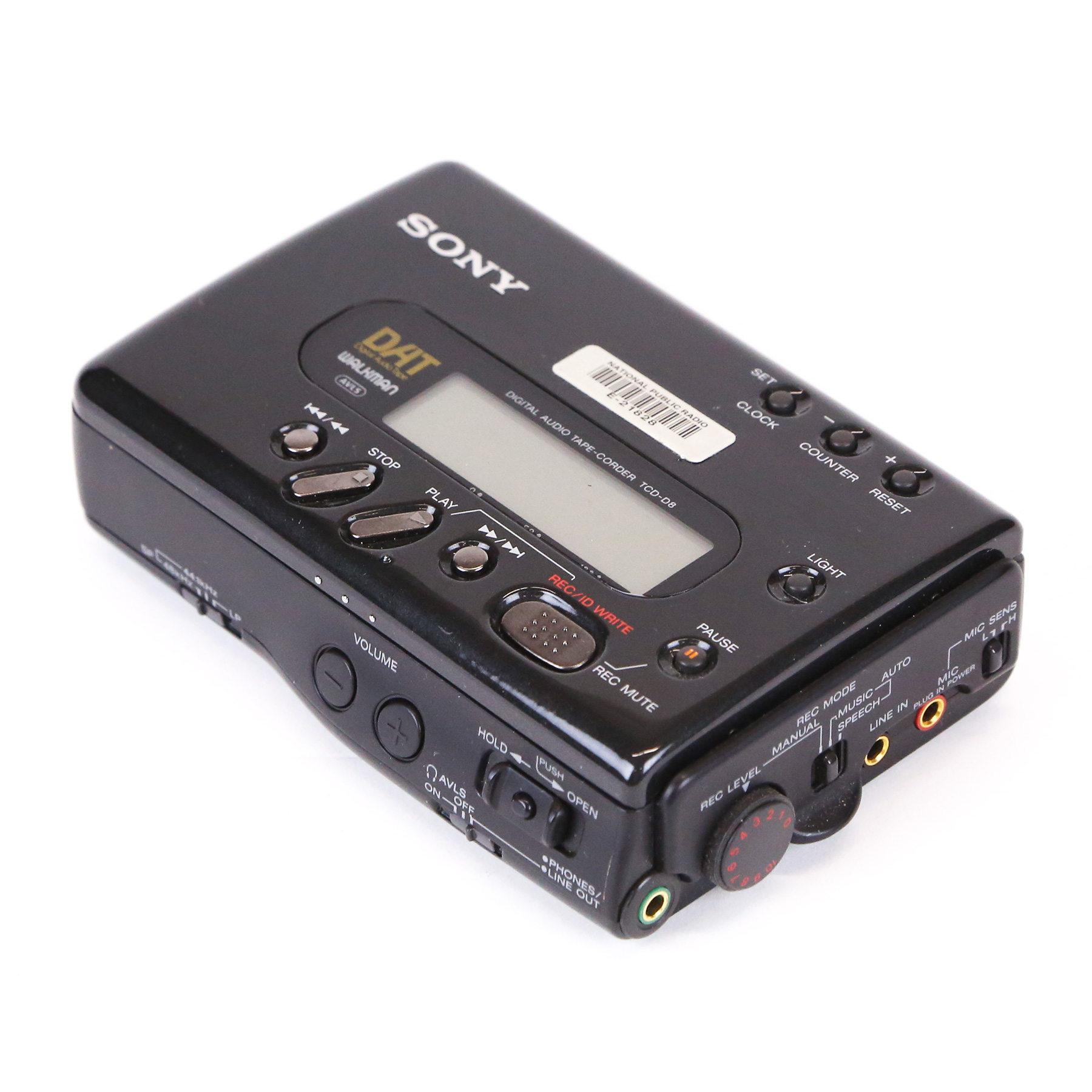

– For your consideration is this 1993 Sony Walkman TCD-D8 Digital Audio Tape (DAT) recorder unit.

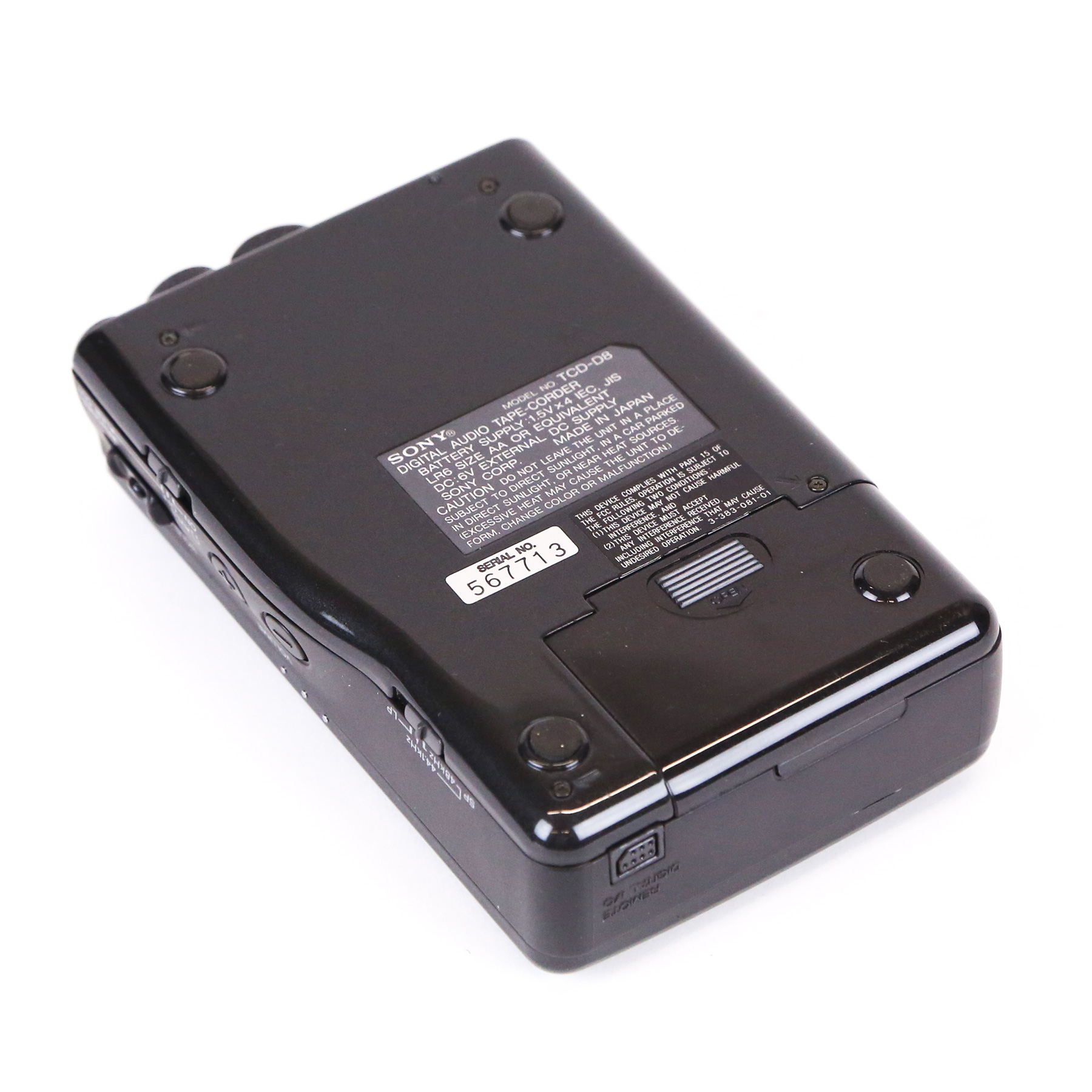

– Previously owned and used by National Public Radio (NPR), this very nice example (serial number 567713) is in perfect working order.

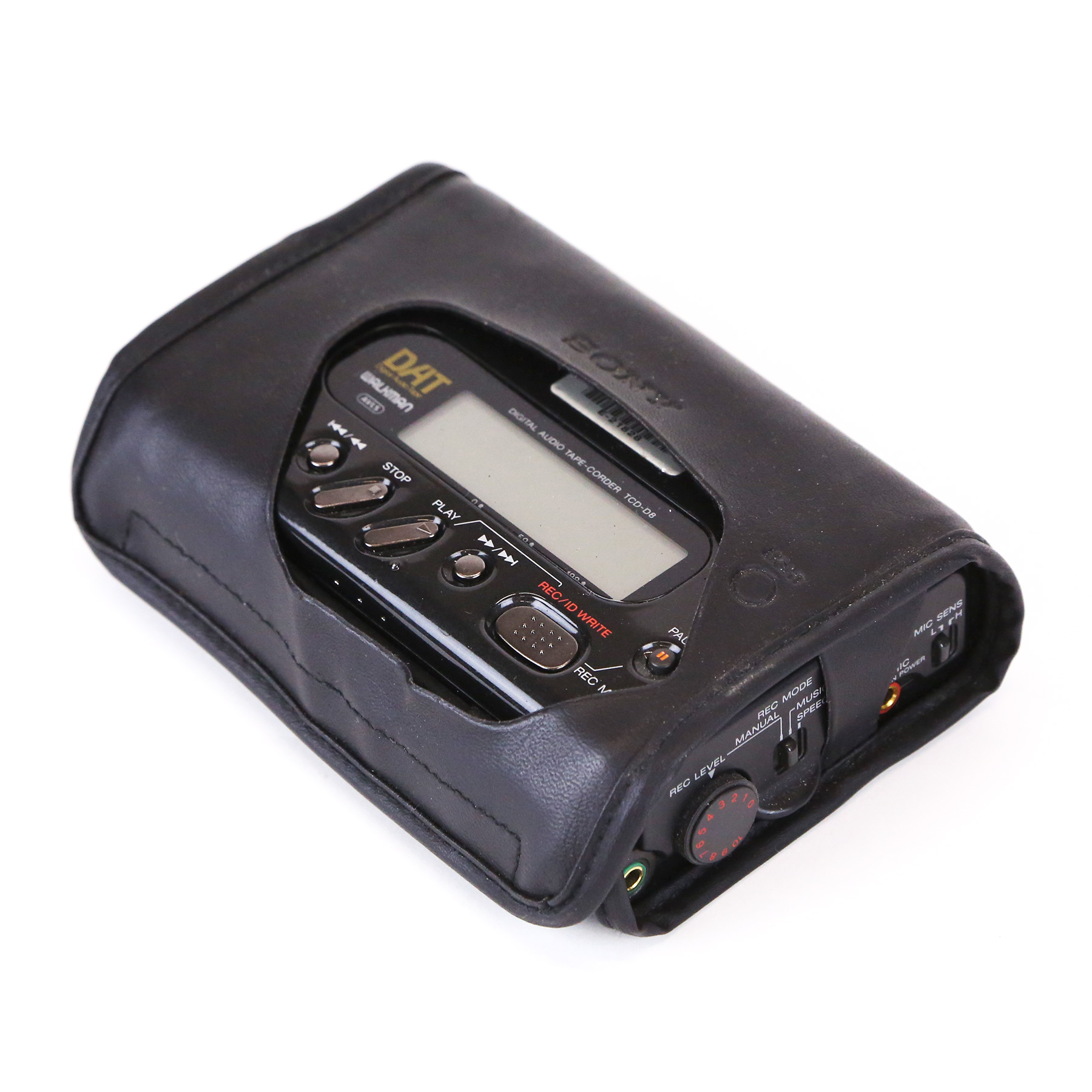

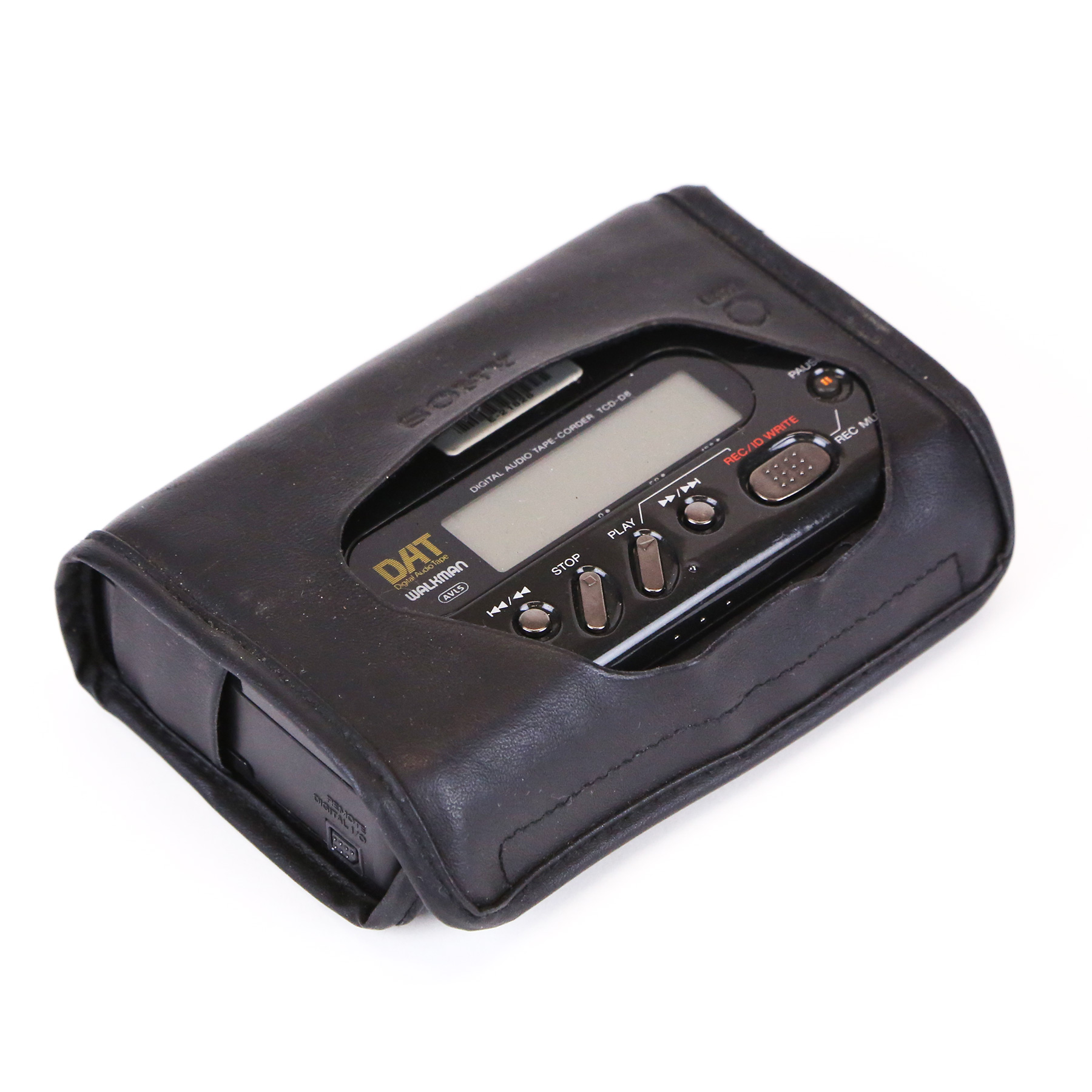

– It includes the original belt case protective cover, and retains the NPR inventory label.
Key Features:
– Date and time stamp function
– 32, 44.1 and 48 kHz sampling rates
– Carrying case and cleaning tape supplied

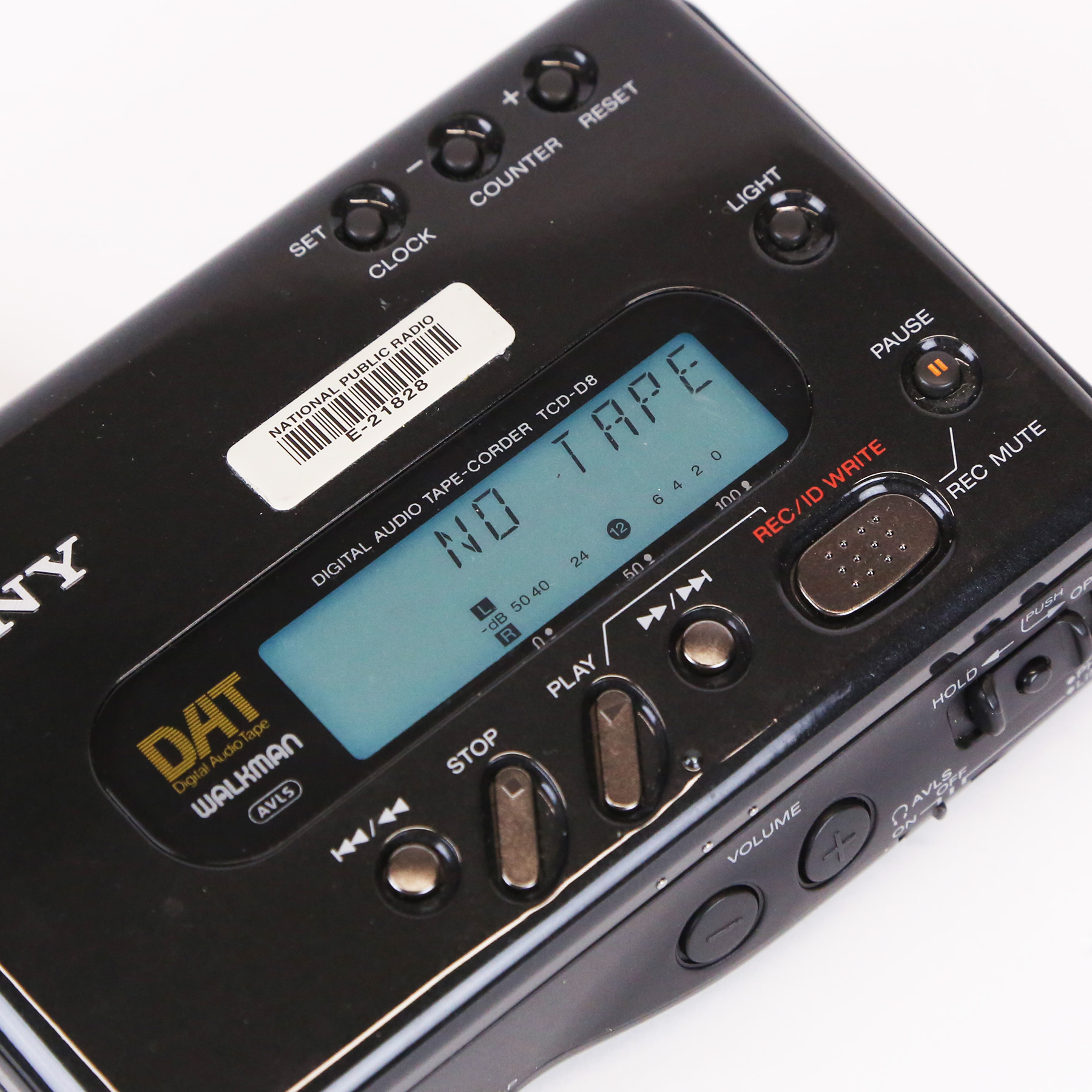

– Back-lit LCD display
– Manual, Music and Speech recording level controls
– 44.1 kHz analogue recording for CD mastering
– 1 bit A/D and D/A converters
– 7 pin digital in/out connector
– Digital recording with better than CD-quality sound
– Gold-plated jacks for enhanced conductivity
Specifications:
• Tape: Digital audio tape
• Recording time: Long-play: 240 minutes (with DT-120)
• Recording time: Standard: 120 minutes
• Sampling Frequency: 48kHz, 44.1kHz, 32kHz
• Standard: Fs 48 kHz 20-22,000 Hz (+ or – 1.0dB)
• Standard: Fs 44.1 kHz 20-20,000 Hz (+ or – 1.0dB)
• Long-play Mode: Fs 32 kHz 20-14.500 Hz (+ or – 1.0dB)
• Standard: More than 87 dB
• Long-play Mode: More than 87 dB (1 kHz IHF-A, 22kHz LPF, LINE IN)
• Standard: Less than 0.008% (1 kHz IHF-A, 22kHz LPF, LINE IN)
• Long-play: Less than 0.09% (1 kHz IHF-A, 22kHz LPF, LINE IN)
• Wow And Flutter: Below measurable limit (less than + or – 0.001% W.PEAK)
• Impedance: 4.7 Kohms
• Minimum Input Level: 0.4mV
• Rated Input Level: 500 mV
• Minimum Input Level: 80 mV
• Audio: Stereo minijack
• Impedance: 27 ohms
• Rated Output: LINE OUT 500 mV
• Maximum Output: PHONES 5 mW + 5 mW
• Load Impedance: PHONES 32 ohms
• Load Impedance: LINE OUT more than 10 Kohms
• Digital I/O-REMOTE jack (special jack): Digital input/output, remote control operation and timer- activated operation is possible
• Power Requirements: The car battery cord DCC-E160L(not inc.) for use with 12V car battery of DCC-E260HG (not inc.)I
• Power Requirements: DC IN 6V jack accepts the Sony AC power adaptor for use on 240v AC, 50 Hz
• Power Requirements: DC 6V four LR6 (size AA) batteries
• Power Consumption: 1.2W
• Dimensions: Approx. 132.6 x 36.7 x 88.2mm (5.25 x 1.5 x 3.5in.)(w/h/d) not incl. projection parts and controls
• Mass: Approx. 500g (1lb. 1oz.) incl. batteries
